REFLECTRON RFT10




REFLECTRON RFT10 Goettingen-Abel1 spectrometers

Our standard model RFT10 time-of-flight mass spectrometer is an extremely versatile instrument which is used in many different areas of research. The analyzed ions can originate from almost any ionisation process:
  • electron impact ionization of gas phase species
  • laser ionisation, VUV ionisation,
  • laser desorption and ablation from solid and liquid surfaces and small particles (aerosols, soot)
  • sputtering of surfaces (SIMS)
Features:
  • compact angled reflectron geometry
  • two-stage ion mirror
  • large two-stage channelplate detector (40 mm diameter) for high sensitivity
  • time resolution T/deltaT up to 10 000 (mass 130)
  • electron impact ionisation with magnetically guided electron beam, sweep rate up to 50 kHz
  • MS-Windows based software package for menu-driven spectrometer operation (electron impact ionisation)
  • UHV-compatible setup, (O-ring sealed flanges on request)
  • size allows use in mobile systems for environmental analysis
Geometrical Data
  • overall length 600 to 900 mm
  • (folded) field-free drift space 600 to 1200 mm long
  • connection flange CF150 (8"CF o.d.) or CF100 (6"CF o.d.)
  • flight tube with pump flange CF100 (6 "CF o.d.) and pressure gauge flange CF40 ( 2.75"CF o.d.)
  • distance connection flange - ionisation zone from 100 to 300 mm
Options:
  • mass analysis of negative ions
  • up to 20 kV postacceleration for efficient heavy particle detection with masses > 100 000 amu
  • detector with extended dynamic range to avoid detector saturation by intense mass peaks or high sweep rate
  • three-stage mcp detector for low-signal mesurements
  • additional detector behind the ion mirror
  • additional detector in front of the ion mirror, mounted on manipulator
  • parallel-wire ion gate to remove unwanted ionic species from the extracted ion beam, located in the Wiley-McLaren time focus of the two-stage ion source
Ion sources available:
for electron impact ionisation, laser ionisation, laser desorption and laser ablation, aerosol spectroscopy


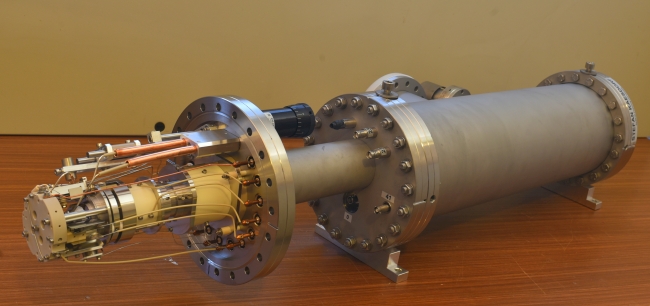

Examples for some RFT10 setups:

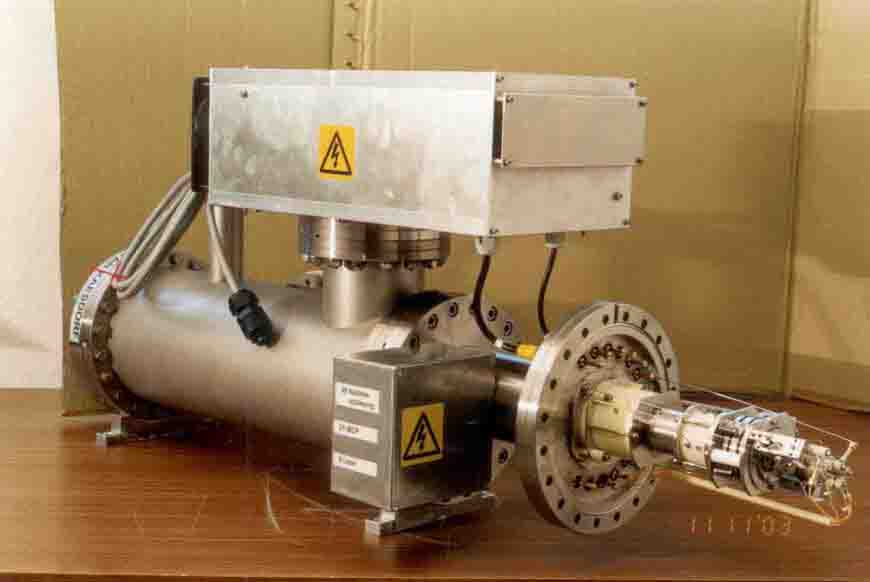

Examples for some RFT10 setups Duisburg-Atakan

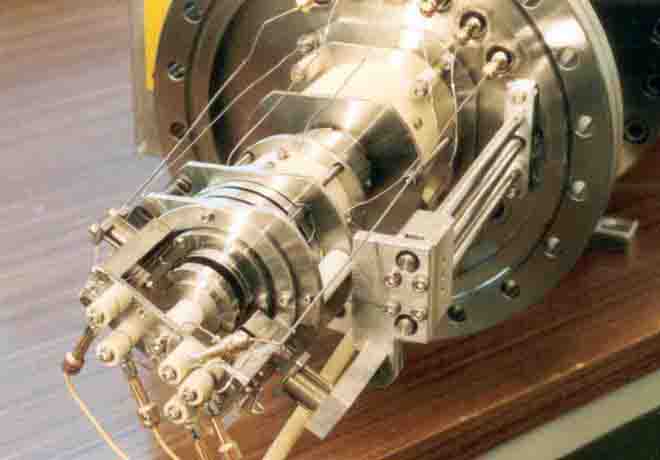

Examples for some RFT10 setups Duisburg-Atakan-iq
bipolar RFT10 for electron impact / laser ionisation, 10 keV postacceleration, 50 kHz sweep rate

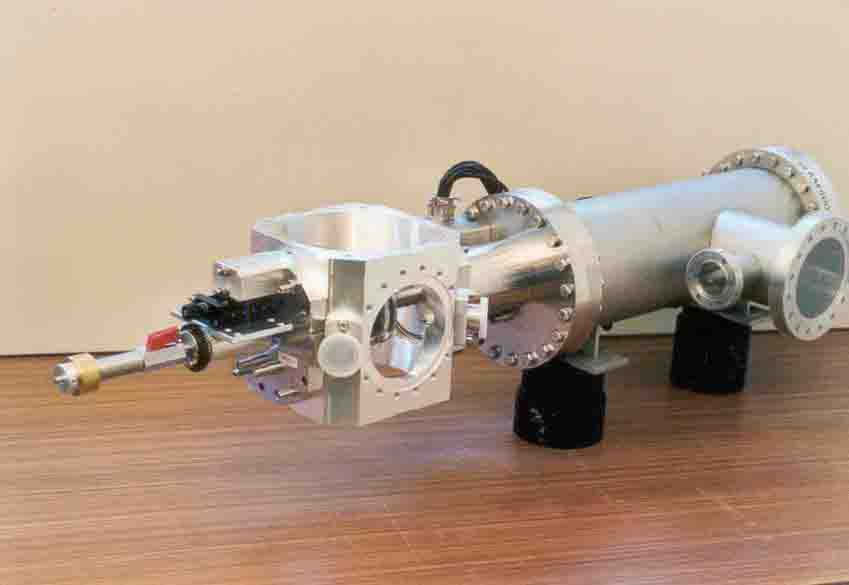

Examples for  RFT10 setup GSF3

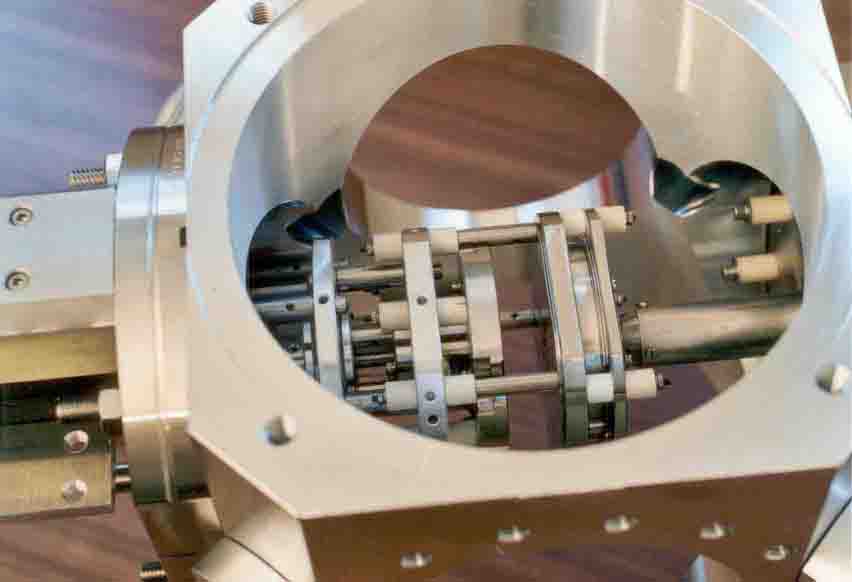

Examples for RFT10 setup GSF3-alukammer

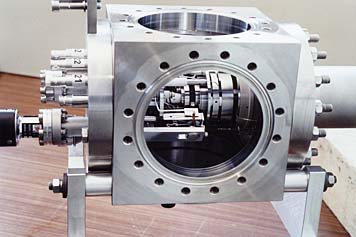

RFT10 with ion source for laser ionisation of gas phase molecules or omolecules desorbing from surface Ion source for laser ionisation

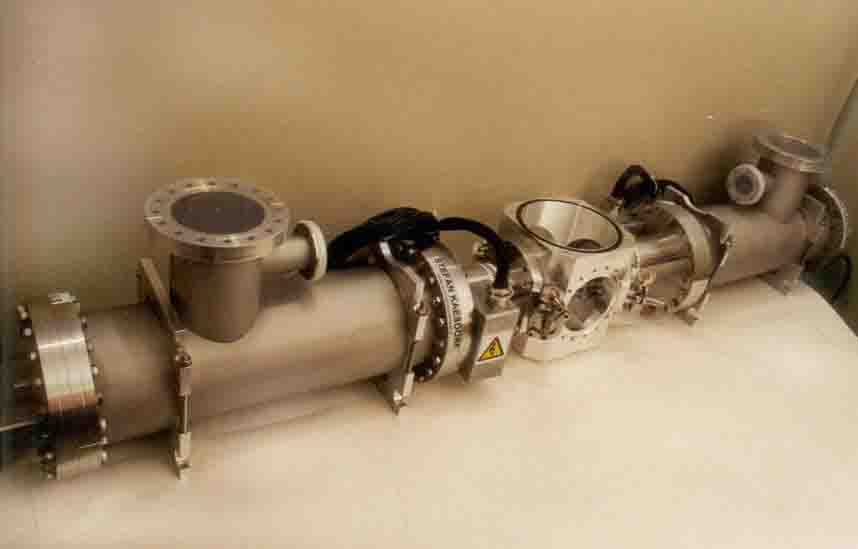

Examples for RFT10 setup GSF-Aerosol
Electron impact ion source mounted opposite to the tof spectrometer
combination of two bipolar RFT10 spectrometers for aerosol spectroscopy Electron impact ion source mounted opposite to the
tof spectrometer

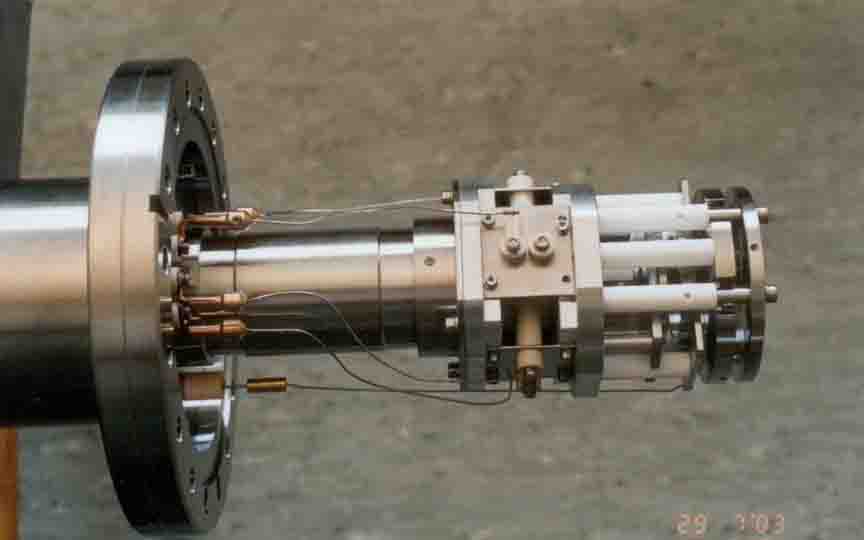

RFT10 Goettingen-Abel2

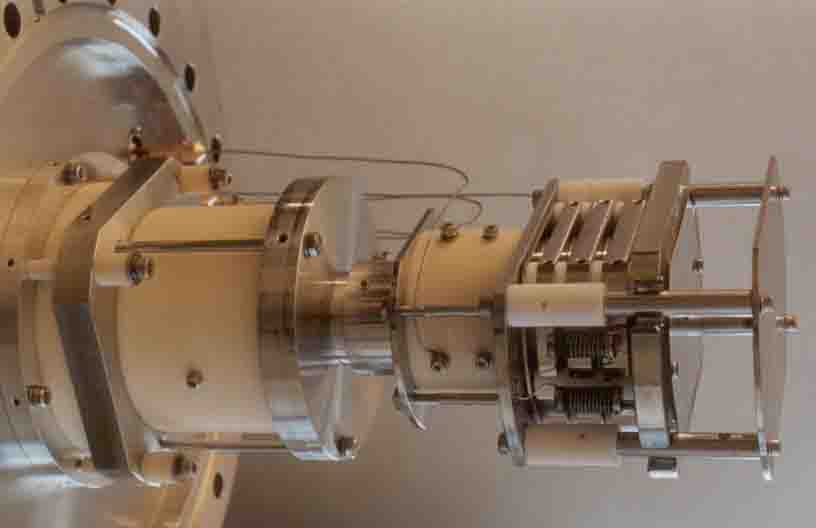

RFT10 ETH2-iq
ion source for ions desorbing from liquid surface
 (orthogonal tof)
REMPI ion source
